Quick Details

  • Condition: New
  • Mixer Type: Ribbon
  • Product Type: powder(food/ medicine), concrete
  • Application: Powder, powder, concrete, chemicals, feed, ceramics and so on
  • Additional Capabilities: Milling
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: JCT-powder mixer
  • Model Number: WLDH-powder mixer
  • Max. Loading Capacity: 20000L
  • Voltage: 380V
  • Power(W): 4-110kw
  • Dimension(L*W*H): 2300*680*1050- 6050*2650*3150
  • Certification: CE, ISO9001, ISO4001
  • Warranty: 3 years
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Motor: SIMENS/ explosion proof motor
  • Vacuum Degree: -0.098MPa
  • Design Volume: 300L~20000L
  • Input Voltage: 380~440V/3 Phase/ 50Hz
  • Material: SS304/SS316
  • Heating temperature: 0~380 centigrade
  • Speed control: Inverter for frequency
  • Seal: Mechanical Seal
  • Discharge type: pneumatic type

Packaging & Delivery

Packaging Details: Standard Export Cases, Standard Neutral packing, wooden package
Delivery Detail: 15-20 working days after the order is confirmed

Ribbon screw horizontal powder mixer








Product Description



1. Product Function Brief of Powder Mixer



A.There are double spiral blades on the drive spindle of the blender. The inner spiral blade conveys the material to the outside, while the outer spiral blade aggregates the material to the inside. The materials are mixed in the convection zone of the double spiral blades, forming a lowpower and efficient mixing environment.



B. The inner and outer spiral blades agitate the material in the barrel, so that it can flip the material in the maximum range. When working, the inner spiral blade drive the materials close to the Axis, and the axis push the materials from both sides to the center, to assure the materials can be uniformly mixed in the shortest time.



Horizontal ribbon mixer

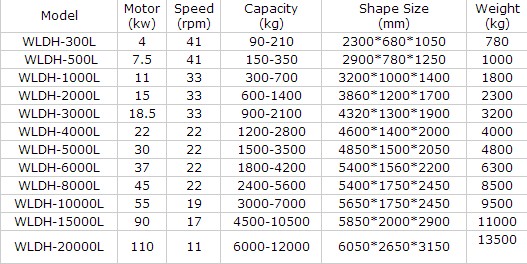

2. Technical Parameters of Powder Mixer








3. Pictures Powder Mixer



Horizontal ribbon mixer



Horizontal ribbon mixer



Horizontal ribbon mixer



4. Main Powder Products Produced by Powder Mixer









5. Our Factory



powder mixer

blender for putty powder making

Company Information



   1. Our company History & Product

 Established in 2006, Foshan JCT Machinery Co., Ltd is a professional manufacturer and exporter that specialize in the research, design and making equipments, such as reactor, kneader, dispersion machine, conical screw powder mixer, horizontal powder ribbon mixer etc. Our machines are widely used in glue, resin, silicone sealant, food, gum, candy, cosmetics,and pharmaceutical industries.



2.Our Address , Market and Service

     JCT Machinery is located in Foshan City, Guangdong Province, with convenient transportation access. Through 10 years’ development, JCT now has grown into a professional and substantial corporation in China.

For the past several years, JCT always insisted on and will ever insist on the credo that “quality and service first,profit second”. All of our products comply with international quality standards and are greatly appreciated in avariety of different markets of the world.

    For many years’ endeavor, JCT has successfully opened the African, Asian, European and the Middle East markets.JCT people are working harder and will take a huge step in the international market.

Except for original designing and manufacturing, applying national patents, JCT also supplies O D M and O E M service

    Friends, if you are interested in any of our products or would like to search for cooperation, please feel free to contact us.

JCT will be your trustful partner in China!

6. Our Clients

7. Why choose us?



1) Profession



We have focused on this area for over 10 years, and the boss of JCT is a professional engineer who has 20 years' experience in what we are concentrating on!



2) Powerful Team



A 8-experienced-engineer designing team + a 35-skilled-technician team + a 10-passionate-sales team make up the JCT powerful team.



3) Achievement



JCT was set up at 2004, through about 10 years' endeavor, our products has been sold to most important industrial districts in China, such as Guangdong, Shandong, Jiangsu, Zhejiang, Fujian and so on.

We have edged ourselves into the top 5 in China.

From 2009, JCT started the international marketing. Now, we have set our feet in North America, Europe, South Aria, Africa etc.



our team
